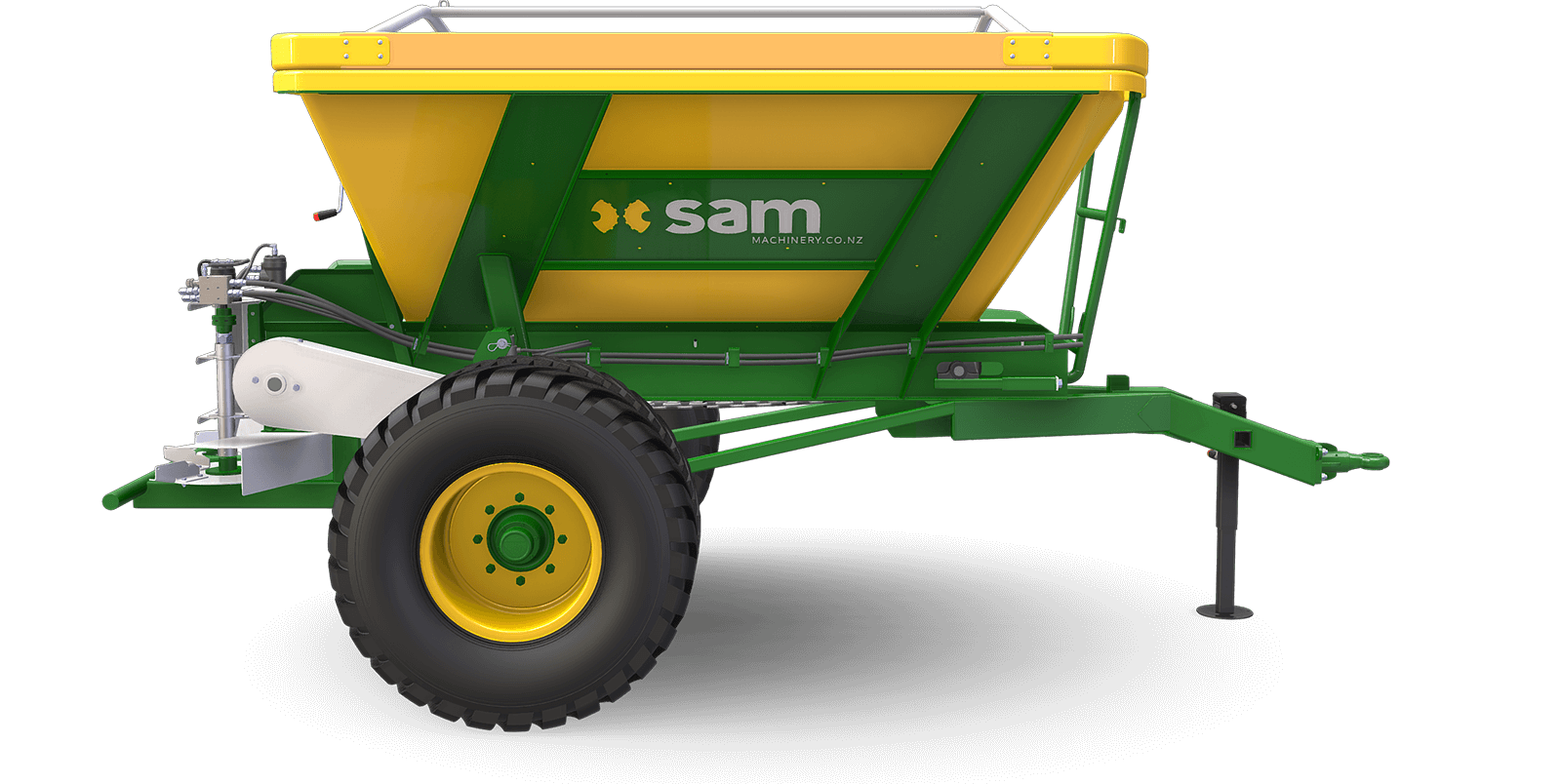

5 Tonne
New Zealand’s favourite spreader.
Known for practical design and easy to use operation, SAM Fertiliser Spreaders are developed from over 70 years’ experience. The features in today’s machines are the benchmark for fertiliser spreading throughout New Zealand.
Choose a SAM Spreader for extreme reliability and mega-solid construction. They provide an accurate spread pattern, with ease of operation and fast spare-parts servicing.
SAM Fertiliser Spreaders are capable of spreading all chemical fertiliser. Including; superphosphate, urea and lime between 40kg - 2500kg/hectare. With spreading widths of up to 20m (superphosphate).
They are available in single or tandem axle with capacities of 4, 5, 6 and 8 tonne. All come standard with a 400mm wide floor-belt.
Keep it simple with a hydraulic clutch to standard ground drive, or upgrade to the latest smart, accurate e-Spreader with load cells.
Smart features
-
More stainless for longevity
Majority stainless at the rear of the machine, extends longevity of gear where you need it most. The stainless discs are run via enclosed stainless spinner tubes and two well-proven hydraulic motors. Easily adjustable tapered roller bearings keep disks tight.
-
Industry leading coating protection system
All chassis's on SAM Spreaders have seen a new evolution of painting procedure. This is for extra corrosion protection. Firstly a blast then a thermal-arc spray followed by the SAM coating difference. It is mega tough stuff!
-
Strong plastic bin
The polyethelyne plastic bin has proven to be extremely reliable. They are strong, corrosion resistant and UV-stabilised. Fertiliser also slips down the sides and washes off easily when you are cleaning your gear.
-
Even, accurate spread
The SAM twin spinner disc design gives an accurate and consistent spread pattern across a range of products. Quick and simple rate setting is by adjusting the rear door.
-
Computer control system
You can also add a computer control system to replace the standard ground drive. This gives hydraulic floor speed rate and control. More info below.
-
Less cleaning with mudguards!
Mudguards are moulded from UV-stabilised polyethylene, and resistant to most chemical and organic fertilisers. Debris chips to the chassis and running gear are reduced and less cleaning required. Mudguards come standard on all tandem axle models below 8 tonne.
-
Patterned rubber floor-belt (400mm wide)
Provides a positive non-slip feed of fertiliser onto the spinner discs. A patterned two-ply rubber floor-belt is riveted to corrosion protected steel bars, welded to high-tensile chain. Stainless skirts run alongside.
Optional extras
- Roll-top cover
- Standard cover
- Internal mesh
- Tyre upgrade
- Load cells
- e-Spreader
- Topcon control
- LED Lights & flags
- Swivel coupling
- Skid
- Safety steps
- Stainless steel hydraulic hose fittings
Roll-top cover
Upgrade to an easy to use roll top cover. This is a simple canvas, frame and bungy system. The handle rolls your cover up, tucked out of the way when not in use.
It is mounted on the rear of the machine so you can load from both sides.
Standard cover
The standard cover is manually thrown across the load and fixed in place with bungys. Keeping it simple.
Internal mesh
This mesh fits inside your bin. It helps to prevent lumpy urea upsetting your spread rate and it also stops large objects dropping down and damaging the belt and gear. Great for spreading crusty Urea.
Tyre upgrade
We have tough high performing tyres to suit any application. They are chosen for their quality and durability.
We can change tyre sizes to suit your specific needs. The 4 and 5 tonne tandem spreaders use 11.5 x 15.3 tyres but these can be upgraded to larger 400 x 15.5 tyres. The 400 x 15.5 tyres are standard on the 6 tonne spreaders but can be upgraded to the 500 x 17 tyres.
550/60 x 22.5 tyres are an option on all single-axle models. These larger tyres can be excellent if you have softer, wetter conditions.
Load cells
Computer drive (e-Spreader & Topcon)
Load cells are added to any computer controlled machine. It is really the only way to get true accuracy because you are actually weighing the product in the bin.
e-Spreader
Any SAM Spreader can be upgraded to an e-Spreader at the time of build. The floor speed is controlled from a screen in your tractor cab. This replaces the manual drive. You can set your rate easily from in your cab and get your spread rate very accurate.
The SAM e-Spreader is super easy to calibrate and every e-Spreader has load cells. Fitting load cells is the only way to get true accuracy because you are weighing your product. This technology means the correct application rate is applied regardless of changes in forward speed.
It also integrates easily with third party GPS systems such as TracMap. You can see how many hectares you have covered from the screen and the weight you have applied. This live data means proof of placement is easy. If you are already using a third party tracking system you don’t have to reinvent the wheel!
80 - 90 l/min of oil flow from your tractor is preferred.
Ask us about the new ISOBUS compatibility upgrade.
Topcon control
Adding the new Topcon computer control system means the correct application rate is applied regardless of changes in forward speed or changes in product density.
By adding the load weigh scales too, the weight of product in the bin is integrated, allowing dynamic rate control. It is continuously using the weight of product in the bin to check spread rate accuracy.
This computer control system is ISOBUS compatible so can function with the majority of modern tractor consoles.
LED Lights & flags
If you are using your machine on the road you will need a set of lights and flags. The flexi mounting boards are made from durable plastic, hardy for knocks and general wear and tear.
Weatherproof lights are LED and plug directly into your power source.
Swivel coupling
Smaller spreaders come standard with a fixed coupling. The 6, 8 and 9 tonne spreaders come standard with a heavy-duty swivel coupling.
Swivel couplings can be added to smaller machines if required. They are great for varied terrain. You can choose a donut eye for coupling with a quick hitch or the insert option for tractor coupling.

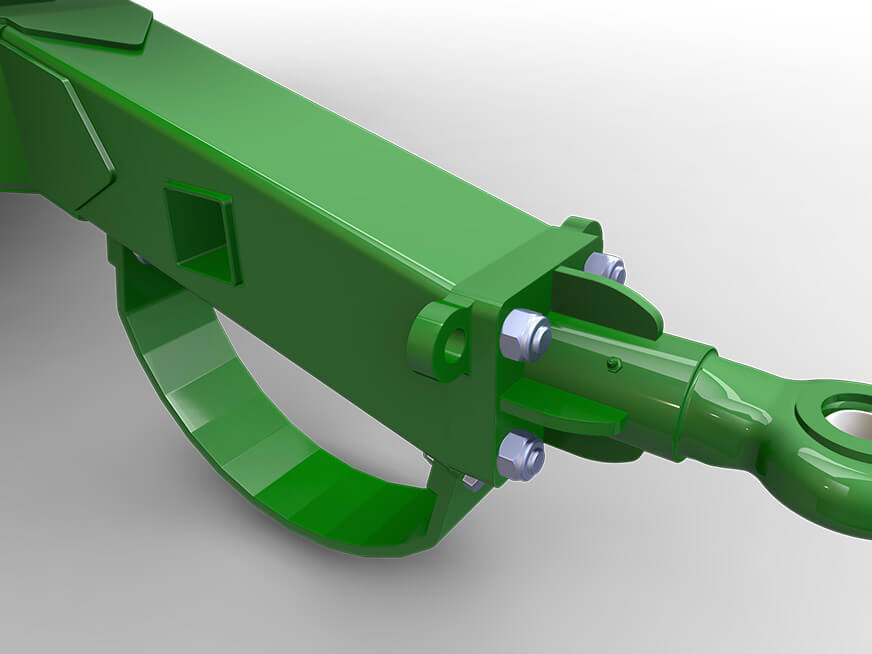

Skid
If you are using your machine with a quick hitch you will want to include a skid on the drawbar.
Please also specify that you would like a donut eye on your tow eye.
Safety steps
Adding steps to your SAM adds an extra layer of safety. They provide strong, stable stepping points and grip bar. They are an optional extra on the smaller models and are included as standard in the 8 & 9 Tonne.
Stainless steel hydraulic hose fittings
Higher grade hydraulic hose fittings for rust protection.
Specifications
- Axle type Single-axle 80mm stub on 550 x 22.5
- Axle capacity 8,000kg
- Wheel type 550/60 x 22.5
- Jack type 70mm screw jack
- Length 4.7m
- Width
- Height 2.13m
- Bin width 2.15m
- Bin length 4.7m
- Capacity 3.9m3
- Superphosphate 5 tonne
- Lime 6.63 tonne
- Urea 3.1 tonne
Fast central support service
Our SAM range is backed by a quick and efficient support service from central Hamilton. The team are also available for technical help should you need it.
Our guarantee
We deliver quality products and stand by them. All Spreaders go through rigorous quality and accuracy testing. They also have a comprehensive warranty.
