32mm pin
Easy to use and built to last.

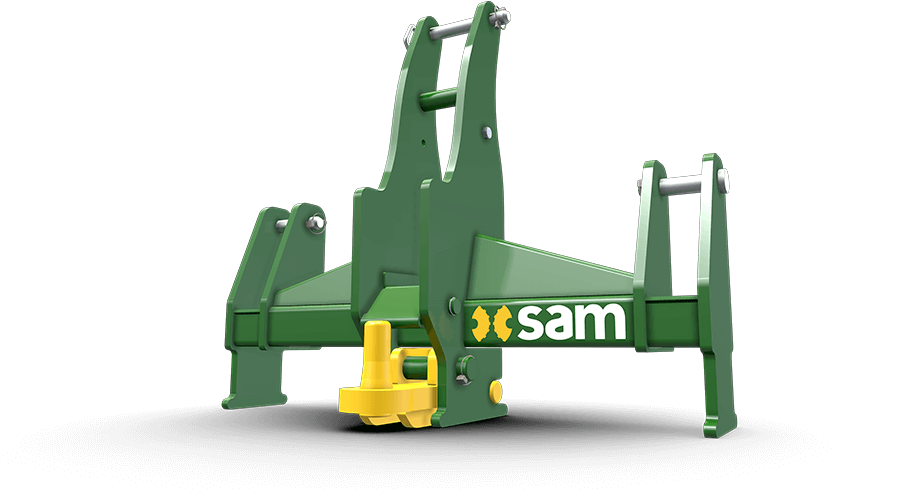

The SAM Quick Hitch provides, simple coupling from the cab of the tractor across a range of trailed implements, saving you time.
The Quick Hitch stands unsupported (when not in use) allowing quick alignment - no unnecessary manual lifting is required.
Once connected to a three-point linkage, operators have a clear view of the tow-pin from the tractor cab ensuring an easy pickup every time.
Fully-welded construction means it is engineered for safety, strength and durability. SAM Quick Hitches are suitable for a range of trailed implements.
Two tow-pin sizes are available and can be easily changed out if required. The larger pin is always recommended in the first instance for strength. Keep in mind we can easily replace the tow eye on your implement to fit the larger 40mm pin.
The larger pin is suitable for trailed implements up to 15 tonnes. The smaller pin is suitable for up to 12 tonnes.
You can even custom your colour to suit your tractor set-up. Green, silver, black and red are available. Purchase direct from our store or your local dealership.
Proudly NZ-made. Since forever.
Smart features
-
Excellent view
Excellent view of tow-pin and safety latch for safe loading and unloading.
-
Fully-welded
Fully-welded construction means the SAM Quick Hitch is engineered for safety and strength.
-
Self-supporting stand
Designed with a self-supporting stand (when not in use) - allowing quick alignment.
-
Safety latch
An integrated safety latch secures over the tow-eye to lock.
-
CAT-2
CAT-2 lift-arm and top pins (fully replaceable lift-arm, top pins and linch pins).
-
Tow ball option
Tow ball option is also available if you need it.
-
Different pin sizes
Two tow-pin sizes are available and can be changed out easily. The standard is 40mm designed to work with a 50mm eye on the implement coupling. While the 32mm pin is to work with a 37mm eye on the implement coupling.
-
Corrosion resistant paintwork
All Quick hitches have seen a new evolution of painting procedure. Firstly a steel grit abrasive blast then a thermal-arc pure zinc spray. It is corrosion resistance for the long-term.
Specifications
- Overall height 730mm
- Overall width 400mm
- Overall length 940mm
- Weight 95kg
- Pin size 32mm
Fast central support service
Our SAM range is backed by a quick and efficient support service from central Hamilton. The team are also available for technical help should you need it.
Our guarantee
We deliver quality products and stand by them. All implements go through rigorous quality and accuracy testing. They also have a comprehensive warranty.
