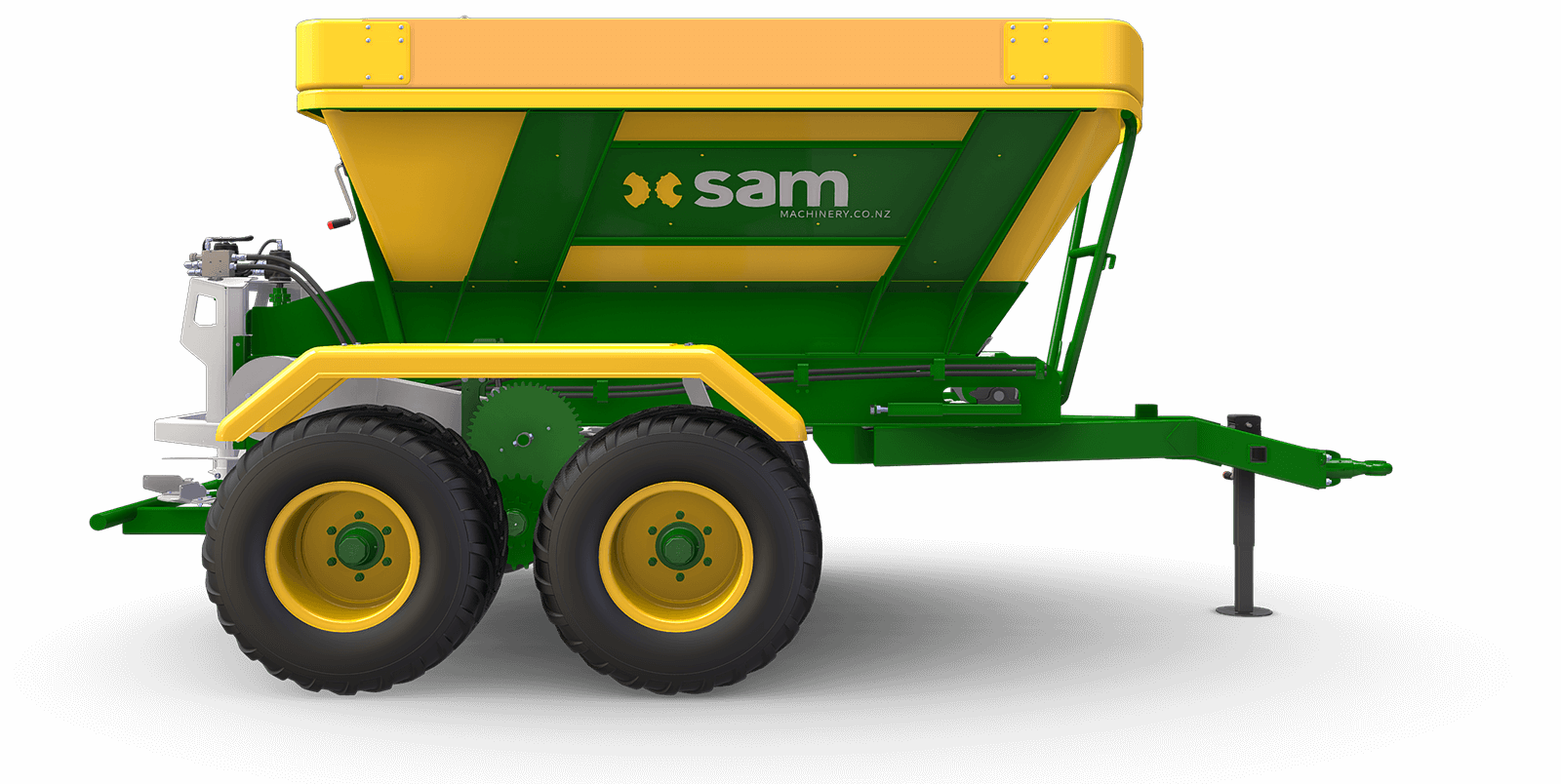

6 Tonne Combo
Tough and versatile.
With the same practical design and easy to use operation that all SAM’s are known for, the SAM Combo Spreaders (800 Series) provide extra versatility around what you are able to spread.
They are capable of spreading chemical fertiliser including; superphosphate, urea and lime. But will also spread most organic product like chicken and pig manure, screw-pressed effluent and sand.
Available with capacities of 4, 5, 6 and 8 tonne. All come standard with an 800mm floor belt and are generally tandem axle.
Keep it simple with a standard hydraulic clutch to ground drive, or upgrade to the latest smart, accurate computer control system with weigh scales.
More stainless for longevity
Majority stainless at the rear of the machine, extends longevity of gear where you need it most. The stainless discs are run via enclosed stainless spinner tubes and two well-proven hydraulic motors. Easily adjustable tapered roller bearings keep disks tight.
Corrosion resistant paintwork
All chassis's on SAM Spreaders have seen a new evolution of painting procedure. This is for extra corrosion protection. Firstly a steel grit abrasive blast then a thermal-arc pure zinc spray, a primer followed by a final two-pot epoxy top-coat. It is mega tough stuff!
Strong plastic bin
The polyethelyne plastic bin has proven to be extremely reliable. They are strong, corrosion resistant and UV-stabilised. Fertiliser also slips down the sides and washes off easily when you are cleaning your gear.
Even, accurate spread
The SAM twin spinner disc design gives an accurate and consistent spread pattern across a range of products. Quick and simple rate setting is by adjusting the rear door.
Load weigh scales
You can add scales to your spreader. This gives simple, accurate electronic weighing of your fertiliser. And can be zeroed out any time. More info below.
Computer control system
You can also add a computer control system to replace the standard ground drive. This gives hydraulic floor speed rate and control. More info below.
Less cleaning with mudguards!
Mudguards are moulded from UV-stabilised polyethylene, and resistant to most chemical and organic fertilisers. Debris chips to the chassis and running gear are reduced and less cleaning required. Mudguards come standard on all tandem axle models below 8 tonne.
Rubber floor-belt (800mm wide)
Provides a positive non-slip feed of fertiliser onto the spinner discs. A two-ply patterned rubber floor-belt is riveted to hot-dip galvanised steel bars, welded to high-tensile chain. Stainless skirts run alongside.
This optional extra is designed to break up and crumble organic material like screw pressed effluent. This improves the flow to fall consistently onto the spinner discs.
Swivel coupling adds stability
Smaller spreaders come standard with a fixed coupling. The 6, 8 and 9 tonne spreaders come standard with a heavy-duty swivel coupling. They are great for varied terrain. You can choose a donut eye for coupling with a quick hitch or the insert option for tractor coupling.

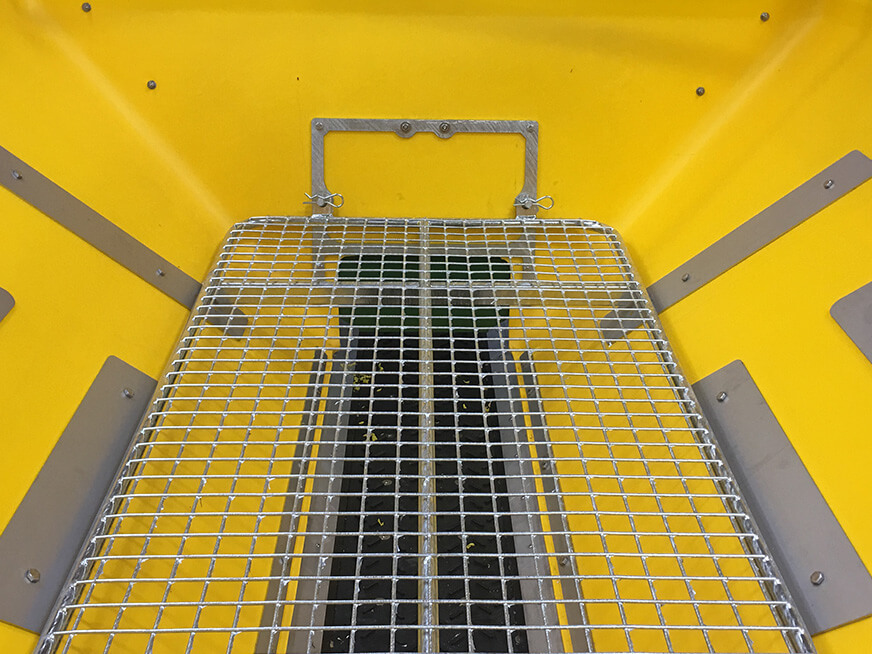

Stops large objects dropping down and damaging the belt and gear.
App for verifying rates
A great check against your back door setting to verify exactly what you are spreading. This is for use with Spreaders fitted with load cells. Contact us and we will send you the link. Currently Android only.
Find out which finer details are right for you.
Standard ground drive SAM Spreaders
Should I go for a Standard Spreader (400mm wide floor mat) or a Combo Spreader (800mm wide floor mat)?
SAM Fertiliser Spreaders (400mm wide mat) are capable of spreading all chemical fertiliser including superphosphate, urea and lime.
SAM Combo Spreaders (800mm wide mat) are capable of spreading chemical fertiliser including; superphosphate, urea and lime, but will also spread most organic products like chicken and pig manure, screw-pressed effluent and sand.
Is there anything the Combo Spreaders won’t spread well?
In general your product needs to be fairly free-flowing to spread properly. A good test is to dig a spade into your product from the side, if it falls in on itself then it should flow through the machine nicely.
At the other end of the scale, anything too wet e.g. effluent, may leak out the sides of the bin.
Standard ground drive SAM Spreaders + load cells
Why would I want to add load cells to my standard Spreader?
Load cells are an optional extra. They give an accurate measure of the weight of fertiliser in the bin and can be zeroed at any time. As standard, an Iconix FX15 display unit is supplied with machines fitted with load cells. This is fixed to the front of your Spreader.
Load cells need be added to your machine at the time of build. They cannot be retrofitted to Spreaders.
Can I view the weight of fertiliser in the bin on my phone?
To support load cell weighing, we have created a simple mobile phone App.
This App means you can view the accurate weight of product in your machine on your phone.
The App will also allow you to to check your rate per Hectare with an easy and quick calibration process. The App works off Bluetooth, is simple to use and free to download. It is currently for Android only.
Standard ground drive SAM Spreaders + proof of placement
What is proof of placement and how do I get that?
Proof of placement means you are able to record and retain proof of what you have been spreading, where you spread it and when. Different councils may have slightly different regulations for how to comply.
Proof of placement can be achieved in a number of ways. A standard ground driven SAM Spreader can achieve proof of placement with any GPS mapping systems e.g. Topcon, TracMap or similiar.
You manually key into your screen what you are spreading and the rate. The details will automatically be recorded in your mapping program. While you are spreading the mapping program will record the track of the spreader in the paddock, to be uploaded to a cloud based server or local computer for later reference. Both Topcon and TracMap offer a hosting service to store your maps.
Computer controlled drive SAM Spreaders
I’m thinking about buying a fully computer controlled SAM Spreader - what is this?
Any of our Spreader models can be manufactured with a computer control system installed to replace the standard ground drive. This computer operates a hydraulically driven floor-belt. Application rates are adjusted easily from the screen inside your cab.
The screen requires a few quick inputs from you; fertiliser density, spread width and spread rate. Then you are away.
Computer drive needs be added to your machine at the time of build. They cannot be retrofitted to Spreaders.
What are the advantages of having a computer drive?
- Application rates can be set from the touchscreen inside the cab
- Spreaders can travel very slowly while spreading at a very high rate (spreading shavings into sheds etc.)
- The integration of load cells gives pinpoint precision on the weight of fertiliser in your bin at any time (available with the Topcon computer control only)
- Border control gives protection for your headlands
- Spreaders can be unloaded without moving forward
- It is easy to extract information for proof of placement record keeping
- Proof of placement mapping can be included with the Topcon computer control system
What are the disadvantages of computer drives?
- Higher purchase cost
- Tractor must have higher oil flows (approximately 100 litres per minute)
- Most suited to operation behind one tractor as the power supply is hard-wired
- Operators require more training
- Electronics fitted on computer controlled Spreaders require more care
Can I add computer control to my Spreader without adding load cells?
Yes you can. This is called Volumetric rate control.
Computer control can be used as a simple rate controller. Either by entering a known product density or selecting the fertiliser product from a pre-defined list.
Spreader functions like spinner speed and border control are all monitored and operated through your touch screen.
The benefit of volumetric rate control is that you are saving on the cost of the load cells. However you are not getting the added benefit of a continuous double check of the weight of product in your bin.
Please note: If you are after a simple volumetric rate controller, the Whitehead V3 is also a great alternative to our Topcon computer control system.
Why would I go for the Topcon computer control with integrated load cells (using my tractors own ISOBUS screen)?
This is Dynamic / Static rate control. It includes integrated load cells and can be managed from the tractors own ISOBUS screen.
This set-up includes fully hydraulic floor speed and rate control. It measures the weight of product in the Spreader on the go. The floor speed is automatically adjusted to achieve the correct application rates dynamically (on the move).
This advanced control means extra precision. The accuracy of rate is as high as 99% of the target rate. You are getting automatic rate calibration and gaining maximum value from what you are spreading out.
Most new tractors are ISOBUS compatible, meaning the system can plug straight into your tractor and can be controlled from your existing console. This can save the cost of a second display.
Border control functionality is included. Border control when switched on reduces spinner speed on the right-hand disk which decreases your spread width on that side. This is helpful for spreading beside boundaries and waterways.
An auto shut-off function is also available at headlands or cross over areas, meaning no areas will receive a double application.
Why would I go for full Topcon computer control with integrated load cells, with X25 screen and GPS aerial?
This is Dynamic / static rate control. It includes load cells and a GPS aerial and our Topcon X25 screen for inside the cab of your tractor.
This set-up also gives you the above functionality (computer controlled rate application, border control, auto-shut off) as well as a GPS aerial for proof of placement, light bar and field mapping of your jobs.
Record all your spreading details for improved traceability and record keeping.
This set-up means you can swap tractors easily by simply swapping the screen across.
Can I use my own GPS aerial?
Just call us up and let us know what kind of aerial you are using and we will let you know if it is compatible.
What is TAP?
TAP stands for Topcon Agricultural Platform. It stores your inputs for mapping and proof of placement reporting. It is all about easy access to your data. This functionality will be available soon in NZ. Call us and we can talk you through it.
What is variable rate spreading?
This means changing spread rates automatically on the move from preplanned fertiliser mapping uploaded to the computer. Call us anytime if you want to chat further about this add-on.
Do I need an inline oil filter with my computer control Spreader?
An inline oil filter is recommended with computer controlled Spreaders. This filters the oil prior to getting into the system. It is a good idea to protect the hydraulics, cartridges and valves of your machine.
Who are Topcon and why are they so good?
Topcon are an international tech company who bought RDS out in 2012. Their technology has been proven in international markets for decades.
They have engineering, manufacturing and development facilities in Europe, The United Kingdom and Australia. There are 2000 Topcon employees worldwide, including a large research and development team, so their products are always innovating. The computer control system has been well tested in the field and has been popular on farms for years.
Elements are customisable to suit your individual needs. The set-up integrates well with our Spreaders by being Isobus compatible, intuitive to use and fully integrated with load cells.
How much of each fertiliser type will my SAM Spreader hold?
4 Tonne Spreader - 3.2m3 (Fertiliser), 4T (Superphosphate 1.3/m3 density), 5.5T (Lime 1.7t/m3 density), 2.6T (Urea 0.8T/m3 density).
5 Tonne Spreader - 3.9m3 (Fertiliser), 5T (Superphosphate 1.3t/m3 density), 6.6T (Lime 1.7T/m3 density), 3.1T (Urea 0.8T/m3 density),
6 Tonne Spreader - 4.6m3 (Fertiliser), 6T (Superphosphate 3T/m3 density), 7.7T (Lime 1.7T/m3 density), 3.7T (Urea 0.8T/m3 density)
8 Tonne Spreader - 6.5m3 (Fertiliser), 8T (Superphosphate 1.3T/m3 density), 10T (Lime 1.7T/m3 density), 5.2T (Urea 0.8T/m3 density)
9 Tonne Spreader - 7.6m3 (Fertiliser), 9T (Superphosphate 1.3T/m3 density), 11T (Lime 1.7T/m3 density), 5.9T (Urea 0.8T/m3 density)

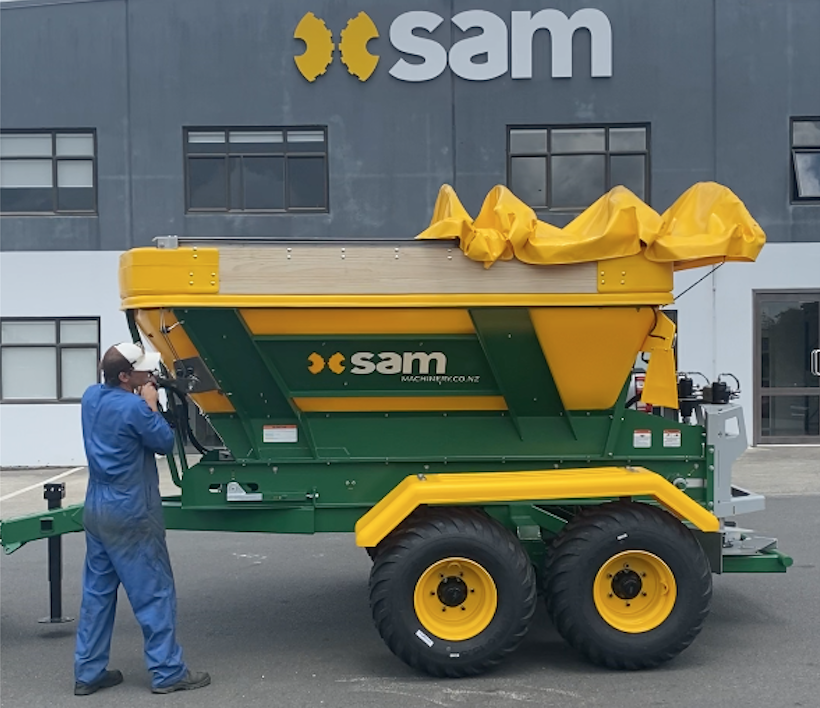

- Roll-top cover
- Standard cover
- Remote axle greasing
- Tyre upgrade
- Topcon computer control system (NEW)
- Whitehead computer control system
- Load weigh scales
- LED Lights & flags
- Material agitator
It is mounted on the rear of the machine so you can load from both sides.
The standard cover is manually thrown across the load and fixed in place with bungys. Keeping it simple.
Remote axle greasing
Remote axle greasing saves you time and effort by giving you access to all axle greasing points. They are raised together in a bank in an easy to reach location.
A very effective way to improve machine maintenance, without having to jump under your machine. So keep that gear greased - no excuses!
We have tough high performing tyres to suit any application. They are chosen for their quality and durability.
We can change tyre sizes to suit your specific needs. The 5 tonne tandem combos use 11.5 x 15.3 tyres but these can be upgraded to larger 400 x 15.5 tyres. The 400 x 15.5 tyres are standard on the 6 tonne combos but can be upgraded to the 500 x 17 tyres.
500/60 x 22.5 tyres are standard on all 8 and 9 tonne models. These larger tyres can be excellent if you have softer, wetter conditions.
Custom options are also available POA.
Topcon computer control system (NEW)
Adding the new Topcon Athene computer control system means the correct application rate is applied regardless of changes in forward speed or changes in product density.
By adding the load weigh scales too, the weight of product in the bin is integrated, allowing dynamic rate control. It is continuously using the weight of product in the bin to check spread rate accuracy.
This computer control system is ISOBUS compatible so can function with many modern tractor consoles.

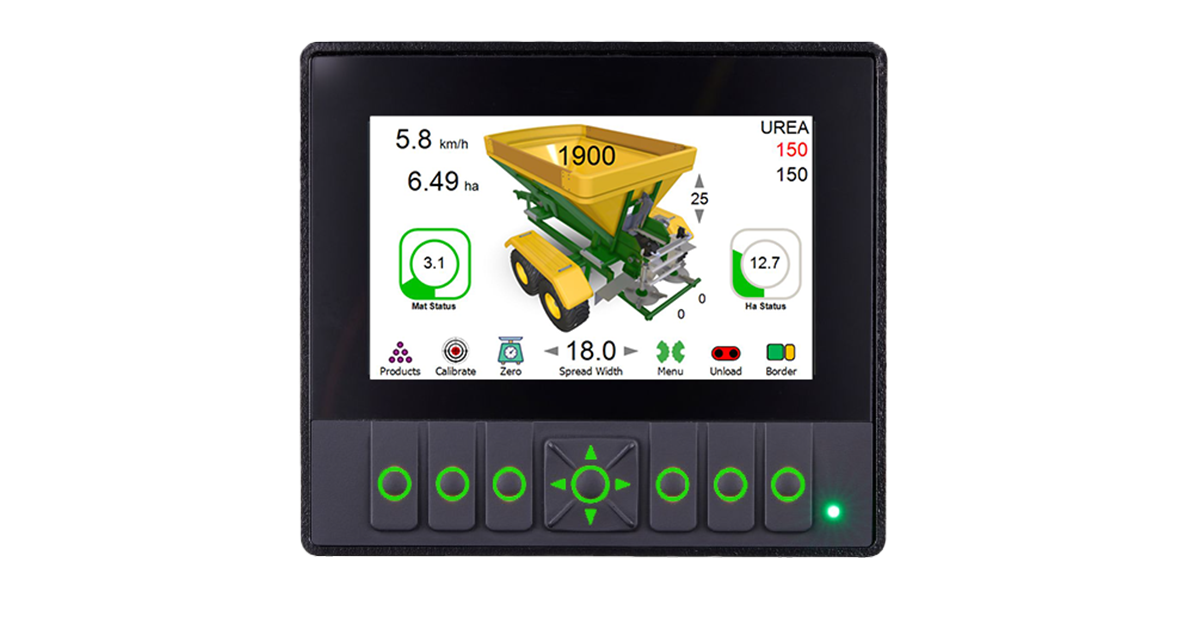

Whitehead computer control system
The Whitehead V3 computer control system can be installed in any of our Spreaders to replace the standard ground drive. This computer keeps the hydraulic driven floor-belt turning independent to the forward speed of the Spreader. Rates can be controlled from the screen inside the cab.
After setup, the V3 controller requires a few quick inputs; fertiliser density, spread width and spread rate.
This brand of computer control system has been chosen for its fantastic track record within the trucking industry. They are number one in their field and have excellent back up service should it ever be required.
If variable rate spreading is required (changing spread rates automatically on the move from uploaded fertiliser mapping) then the the SAM Fertiliser Spreader must be computer controlled combined with the TracMap Pro or similar GPS.
Sometimes there is a misconception that a computer driven Spreader will include as standard a GPS display with light bar guidance and proof of placement software. These components can be easily supplied by third party providers (e.g. TracMap, Trimble) so are not supplied as a standard part of a computer controlled Spreader.
Load weigh scales
Load weigh scales give an accurate measure of the weight of feed in the bin. They can be zeroed at any time. A fixed Iconix FX15 display unit is supplied with all SAM machines fitted with weigh scales.
A simple calculation of the weight of feed spread, divided by the area covered, gives a very accurate spread rate (in kg/ha).
Many new tractors have an inbuilt display that will give area covered at certain spread widths.
A simple App for Bluetooth viewing is also available (currently Android only). This App allows you to verify your spread rate at any time.
Brakes are available for tandem axle machines. They are usually located on the front hubs only. The brake system chosen had been well-proven over the years and is very reliable.
LED Lights & flags
If you are using your machine on the road you will need a set of lights and flags. The flexi mounting boards are made from durable plastic, hardy for knocks and general wear and tear.
Weatherproof lights are LED and plug directly into your power source.
The material agitator is designed to break-up, lift and tumble materials in a gentle but thorough blending action. This process, ideal for organic material and manure, allows for consistent flow onto the spinner disks.
If you are using your machine with a quick hitch you will want to include a skid on the drawbar. There is no extra charge for this. Just let your dealer know when placing the order.
Please also specify that you would like a donut eye on your tow eye.
- Fertiliser Spreaders can travel very slowly while spreading at a very high rate (spreading shavings into sheds etc.).
- Can be upgraded by adding a TracMap Pro to provide variable rate spreading. The desired spread rate changes automatically from one area of a paddock to another.
- Your Spreader can unload without moving forward.
- Tractor must have higher oil flows (approx 100 litres per minute).
- Most suited to operation behind one tractor as the power supply is hard-wired.
- Operators need more training.
- Electronics fitted on Fertiliser Spreaders need more care.
- Higher purchase cost.
- Axle type Tandem-axle 70mm
- Axle capacity 12,000kg
- Wheel type 400/60 x 15.5 14-ply
- Jack type 70mm screw jack
- Overall length 4.9m
- Overall width 2.75m
- Overall height 2.2m
- Bin width 2.1m
- Bin length 2.9m
- Capacity 5m3
- Superphosphate 6T
- Lime 8T
- Urea 4T
Fast central support service
Our SAM range is backed by a quick and efficient support service from central Hamilton. The team are also available for technical help should you need it.
We deliver quality products and stand by them. All Spreaders go through rigorous quality and accuracy testing. They also have a comprehensive warranty.
